GSM Fixed Wireless Terminal

Product No.: GSM-TIT-400

Details:

GSM Fixed Wireless terminal with PSTN port:
GSM Fixed Wireless Terminal is an equipment based on GSM network. It provides fixed phone set access port and converts the wire signal to wireless signal through GSM network.

The terminal can solve the problems of communication with the remote areas, and it is also the best choice for long distance communication with the train, ship, bus, public telephone and other vehicles where wire line cannot be accessed.

This terminal is embedded GSM900MHz/1800MHz wireless communication module. It has high output power and sensitive receiving radio in the GSM network. Compared with common GSM network mobile phone, it has strong signal and voice quality transmission. It has compact pattern, exquisite appearance and convenient operations.

Main Functions:

  1. Suitable for 900/1800 MHz public mobile telephone networks, using SIM card.
  2. Connect with telephones to make and answer calls.
  3. Four ports can share one antenna.Multi-antenna are also compatible.
  4. Detect called party answer, and provide exact reverse polarity signal for charging.
  5. Caller ID.
  6. Dialer function inside, programmable call routing (such as you can set 193 or 17911 IP phone when launching long distance call).
  7. Provide an integrated telephone tone.
  8. Support redialing and hands-free.
  9. Multi-level volume to be chosen.
  10. Available to wireless signal indicator.
  11. Setting up parameters and modification of parameters through the phone set or PC.
  12. Support standby battery(optional).
  13. Double security by phone password and PIN code.

Technique Parameters:

  1. Working Frequency：
    Rx (EGSM 900): 925 to 960 MHz
    Tx (EGSM 900): 800 to 915 MHz
    Rx (DCS1800): 1805 to 1880 MHz
    Tx (DCS1800): 1710 to 1785 MHz
  2. Antenna Plus：>3dBm
  3. Emission Power：2W
  4. Receiving Sensitivity：GSM900: <-117dBm
  5. Working Voltage：AC220V/DC12~48V
  6. User access port:
    Dialing tone frequency: 450Hz continued
    Busy tone frequency: 450Hz 0.35s/0.35s
  7. Volume：440(L)*245(W)*45(H) mm
  8. Weight：3700g
  9. Environment Temperature：0-55 degree centigrade

Application Solutions:

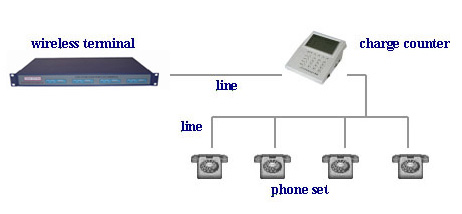

1—wireless IP supermarket:

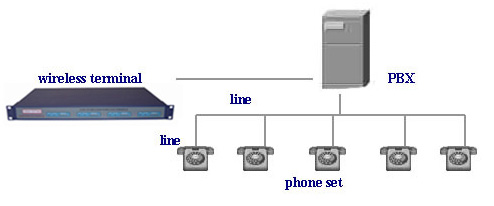

2—wireless trunk line:
